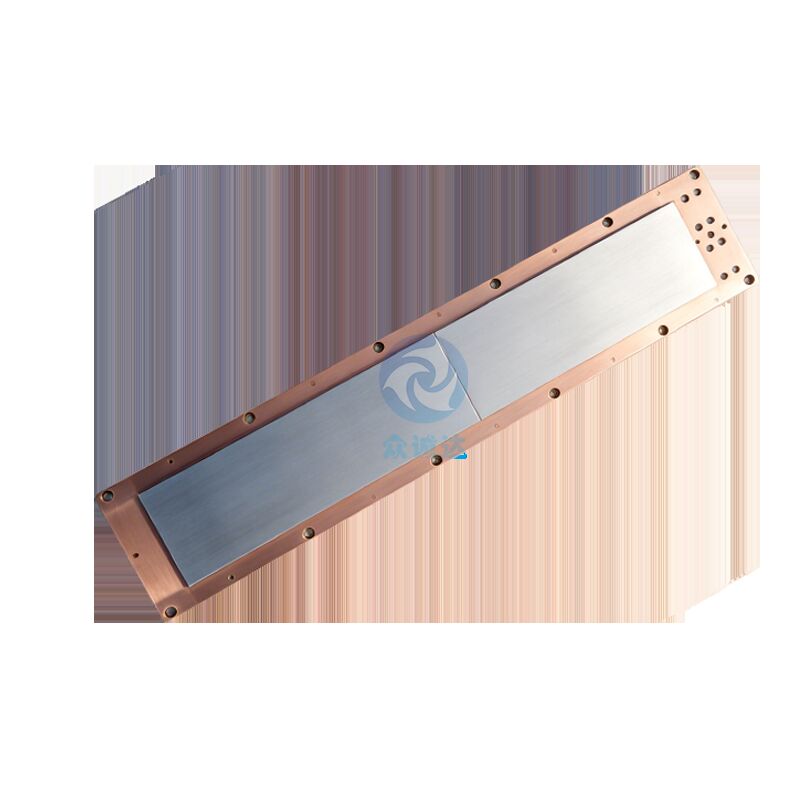

High Purity Molybdenum Niobium Sputtering Target(Monb Sputtering Target)

Engineered from high-purity powders this alloy combines the exceptional hardness, thermal resilience, and high melting point characteristic of molybdenum with the superior electrical conductivity and chemical inertness of niobium. MoNb Molybdenum Niobium Sputtering Targets are used to prepare wear-resistant, high-temperature-resistant, and corrosion-resistant functional films, with applications in semiconductor, optical, energy, and high-end decorative coating fields. The MoNb films produced by sputtering have high density, good adhesion, and stable physical and chemical properties.

Core Advantages of Molybdenum Niobium Sputtering Target

l High Temperature Resistance

The molybdenum content provides a high melting point and good thermal stability, allowing the film to remain stable during high-temperature sputtering processes, suitable for high-power deposition.

l Strong Corrosion Resistance

Niobium enhances film resistance against acid, alkali, and oxidation environments, extending the lifespan of the films and devices.

l Good Electrical Conductivity

The alloy film has stable electrical conductivity, making it suitable for use in electronic devices, functional films, and transparent conductive films.

l High Hardness and Wear Resistance

MoNb films have high hardness and wear resistance, suitable for protective coatings and high-end decorative coatings, enhancing durability.

l Good Film Density

Sputtered films are uniform having strong adhesion which ensure film stability in diverse applications.

Main Applications of Molybdenum Niobium Sputtering Target

l  Semiconductor Manufacturing

Molybdenum Niobium Sputtering Targets can be used to prepare conductive layers, interconnect layers, or shielding layers, providing stable electrical performance and long-term reliability for semiconductor devices and electronic components.

l Display Panels

Used to deposit functional films such as transparent electrode auxiliary layers, gate electrodes, or interconnect lines in LCD, OLED, and Mini/Micro LED display panels. Core advantages: good flexibility, strong interface adhesion with transparent conductive layers (ITO/IZO), and high sputtering uniformity.

l Photovoltaic Industry

Mainly used for back electrodes or conductive backplates in thin-film photovoltaic cells (such as CIGS, CdTe cells). Core advantages: high temperature resistance, resistance to photovoltaic electrolyte corrosion, and low contact resistance.

 l Aerospace

MoNb films have high hardness, high-temperature resistance, and corrosion resistance, making them suitable for surface protection of aerospace and high-temperature industrial equipment, extending the lifespan of critical components.
