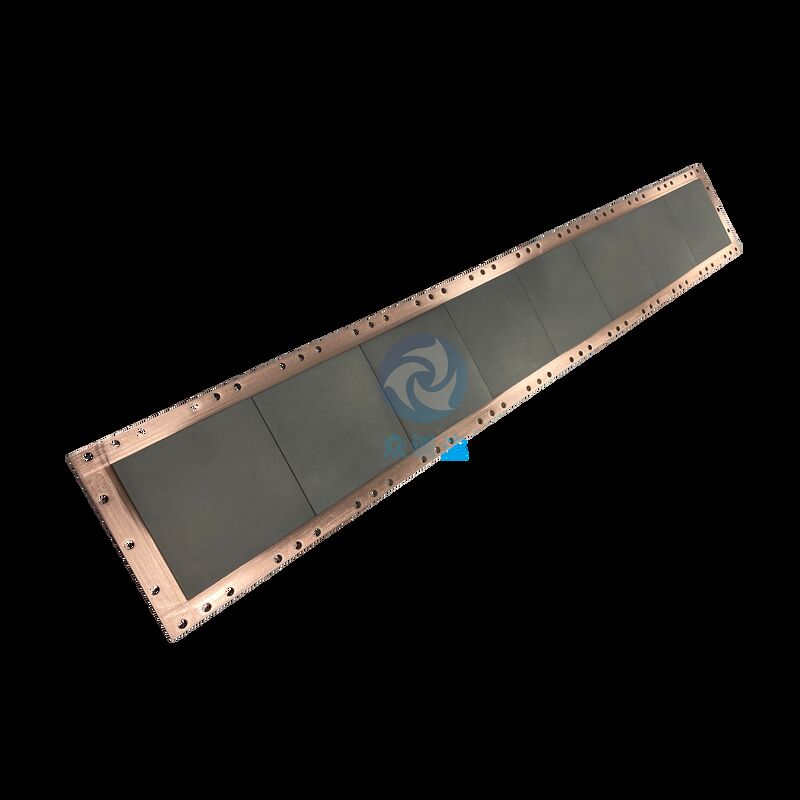

Created with Pixso. Titanium Boride TiB2 Ceramic Sputtering Target For PVD Coating
Detail Information
Place of Origin:
china
Certification:
ISO9001、ISO14001、ISO45001、IAFT16949
Purity:
99.99%
Relative Density:
99%
Name:
Titanium Diboride Target (TiB₂)
Forming Process:
Sintering
Product Specifications:
Planar Targets, Rotary Targets, Custom-shaped Targets
Application Fields:
Display Panel, Touchscreen Technology,Photovoltaic Industry,Flexible Electronics,Optical DeviceManufacturing
Packaging Details:
Vacuum-sealed packaging, case-packed for storage and transport
Supply Ability:
Stable supply
Highlight:

TiB2 Ceramic Sputtering Targets

,

Titanium Boride Ceramic Sputtering Targets

,

PVD Ceramic Sputtering Targets

Product Description

Titanium diboride targets are ceramic targets manufactured from high-purity TiB₂ powders through hot pressing or sintering processes. They are functional materials with high melting points and high hardness. By combining the excellent chemical stability of metallic titanium with the high hardness, wear resistance, and corrosion resistance of borides,TiB₂ targets offer exceptional performance. These targets are widely used in various coating processes, including physical vapor deposition (PVD), magnetron sputtering, and chemical vapor deposition (CVD), enabling the deposition of high-performance ceramic thin films on diverse substrates.

Outstanding Properties of Titanium Diboride Targets



l Ultra-high Hardness and Wear Resistance



The deposited films can achieve a Vickers hardness exceeding 3000 HV, significantly enhancing surface scratch resistance and wear resistance.





l Excellent Corrosion and Oxidation Resistance



The films remain stable in acidic, alkaline, and high-temperature oxidative environments, resisting reaction and degradation, making them suitable for protective coatings under harsh operating conditions.





l Good Electrical and Thermal Conductivity



Unlike conventional ceramics, titanium diboride exhibits a notable level of electrical and thermal conductivity. This unique property makes it suitable for advanced functional coatings that require both exceptional hardness and conductive capabilities.





l Good adhesion and film density



Using high-purity TiB₂ targets enables the formation of dense, uniform films with strong adhesion, improving product consistency and reliability.



Wide Applications of Titanium Diboride Targets



l Display Panel



In the manufacturing of high-end displays such as LCDs, OLEDs, and Mini/Micro-LEDs, indium cerium oxide targets can be sputtered to form transparent conductive films with high transmittance and low resistivity for display panel electrodes and interconnections, significantly improving brightness uniformity, contrast, and service life.



l Touchscreen technology



In touch products such as smartphones, tablets, automotive displays, and industrial control panels, titanium diboride films can replace traditional ITO films as touch electrodes, delivering faster response, better transmittance, and improved flexibility compatibility, supporting narrow bezels and large-size touchscreen designs.





 l Photovoltaic industry



In high-efficiency solar cells such as HJT and perovskite tandem cells, they are used as transparent conductive electrode materials to reduce series resistance, improve photoelectric conversion efficiency, and enhance stability, providing higher-performance conductive solutions for next-generation photovoltaic modules.





l Flexible electronics



They can be sputtered onto flexible substrates such as polyimide (PI) and PET to form flexible transparent electrodes, applied in emerging products such as foldable displays, wearable devices, and flexible sensors.





l Optical device manufacturing



They are used for coating optical glass, optical film stacks, filters, and anti-reflection coatings, maintaining high transmittance while providing conductive or antistatic properties, suitable for precision optical fields such as optical communications and optical sensing.
